Auxiliary hydraulic drive for trailers and semi-trailers

TTS system for mobile applications

for one driven axle up to 75 kW

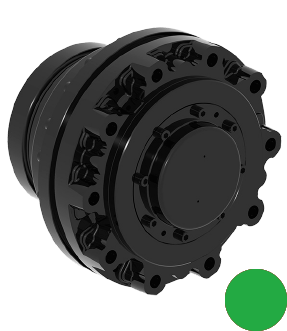

Monitoring equipment Hydraulic motor Valves




  • hydraulic circuit of the tractor
  • low pressure system <200 bar
  • (alt. Medium pressure system <350 bar)
  • torque control
  • flow up to 150 l / min
  • for one driven axle

  • tractor-driven system, constant or variable flow (LS)
  • low and medium working pressures
  • on / off, forward / reverse function, torque control
  • differential lock optional, "hill start assist" function,
  • output for powering other devices (crane)
  • brake control monitoring


Components: control panel, control valve block, differential lock block

Use of hydraulic drive in practice:

  • Construction (tippers, container carriers)
  • Agriculture (harvesting machines, transporters)
  • Forestry (skid lifts)
