PC-Series™ Precision Linear Actuators

Making the change from pneumatic cylinders to electric actuators can simplify your design and deliver savings at the same time.



Superior Performance

  • Higher power density
  • More accuracy
  • Longer stroke lengths
  • Quieter operation
  • Side load capability

Time and Energy Savings

  • Reduced energy costs
  • Reduced setup and changeover time
  • Fewer components than a pneumatic system
  • No air leaks
  • No compressor maintenance

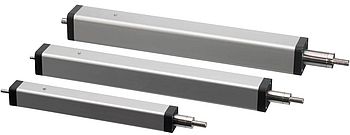

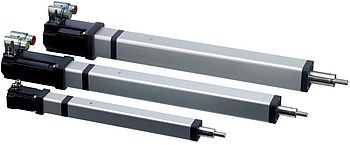

The PC-Series™ is available in three sizes (PC25, PC32 and PC40) and two styles (inline and parallel)

  • Part names: PC25, PC32, PC40
  • Screw Type: ball screw
  • Max. Load (Fx) [N]: 1250, 3200, 6000
  • Max. Stroke [mm]: 600, 1200, 1200
  • Max. Speed [m/s]: 1.33, 1.00, 1.66,
  • Profile Size [mm]: 34 × 34, 45 × 45, 55 × 55
  • Screw Diameter [mm]: 10, 12, 20
  • Screw Lead [mm]: 3, 10 4, 10 5, 10, 20
  • Protection Class [mm]: IP65

Accessories

A complete line of accessories is available – including ISO compatible actuator mounting options, extension tube adapters and limit sensors.

Typical Applications:

  • Form, Fill and Seal Equipment
  • Grading
  • Converting and Container Manufacturing
  • Inspection
  • Marking and Printing
  • Secondary Packaging
  • Conveying, Sorting and Pick and Place
  • Automated Storage and Retrieval
  • …and every application where a pneumatic cylinder can be used.
