DAMPER - Pulsation dampeners

New range of pneumatic pulsation dampener.

The new range of pneumatic pulsation dampener series DAMPER was developed with a new technology, which guarantees an optimal solution to minimize the pulsation effect of the flow. The high damping capacity can be up to 90%. The pulsation dampeners series DAMPER, do not require adjustament or pre-loading, but it adapt to the fluid curve, automatically. The DAMPERs, mounted on the delivery of double diaphragm pumps, drastically reduce the pulsation, the hammerings and the vibrations of the pump.

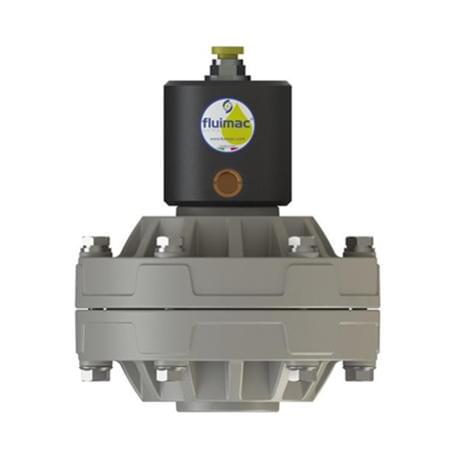

Damper 020

  • PP, PVDF, AISI 316, POMc
  • Connections: 3/4" BSP
  • Air connection: 6 mm
  • Max pressure: 8 bar
  • Applicable to: P7-18-30

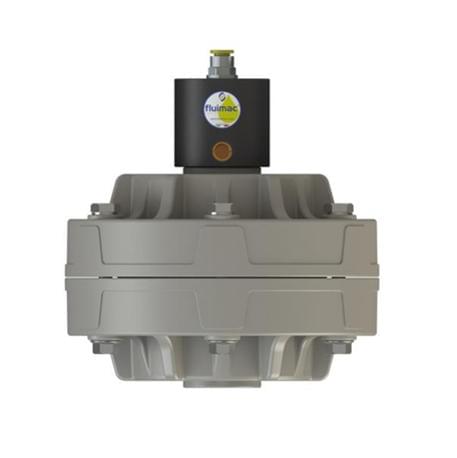

Damper 025

  • PP, PVDF, AISI 316, POMc
  • Connections: 1" BSP
  • Air connection: 8 mm
  • Max pressure: 8 bar
  • Applicable to: P50-65-100

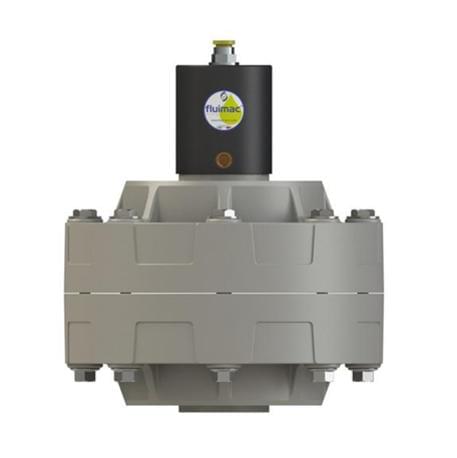

Damper 040

  • PP, PVDF, AISI 316, POMc
  • Connections: 1" 1/2 BSP
  • Air connection: 10 mm
  • Max pressure: 8 bar
  • Applicable to: P160-250

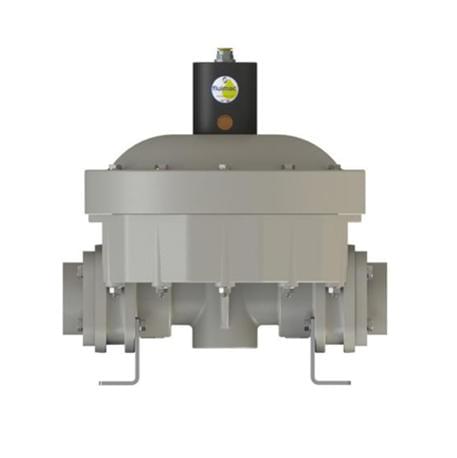

Damper 050

  • PP, PVDF, AISI 316, ALU
  • Connections: 2" BSP
  • Air connection: 12 mm
  • Max pressure: 8 Bar
  • Applicable to: P500-700-1000
